Sign Design Files: Vector Formats, Fonts & Copyright Guide

Why Design Files Matter for Custom Sign Production

Sign design files are the foundation of every custom sign production project. The quality of your design file directly determines the quality of your finished sign. A well-prepared vector design file ensures that your logo, text, and graphics are reproduced with crisp edges, accurate dimensions, and faithful color matching—regardless of whether the final sign is a 6-inch mini LED letter or a 20-foot pylon sign. Conversely, a low-quality or improperly formatted design file can result in jagged edges, incorrect proportions, missing elements, production delays, and additional charges for file rework or redrawing.

For custom sign manufacturers, the design file is the blueprint for everything that follows: laser cutting, CNC routing, welding, painting, LED layout, and final assembly. If the blueprint is flawed, every downstream process is affected. Understanding what file formats work best, how to prepare your artwork, and what font and copyright issues to consider will save you time, money, and frustration in the sign production process.

This guide covers everything you need to know about sign design files, from vector formats and font licensing to logo preparation and copyright considerations. Whether you’re a marketing manager sourcing signage for a new location, a sign broker coordinating with multiple clients, or a business owner ordering your first custom sign, understanding these technical requirements will help you communicate effectively with your manufacturer and ensure a smooth production process.

Vector vs Raster: Understanding the Difference

Before discussing specific file formats, it’s essential to understand the fundamental difference between vector and raster graphics, as this distinction is the single most important factor in determining whether a design file is suitable for sign production.

Vector Graphics (Recommended for Signs)

Vector graphics are created using mathematical formulas that define points, lines, curves, and shapes (paths). Because vector graphics are resolution-independent, they can be scaled to any size—from a tiny nameplate to a building-sized billboard—without any loss of quality or sharpness. The edges of vector shapes remain perfectly crisp at any scale, which is critical for sign production where logos and text are often cut from solid materials using lasers or CNC routers.

Vector files also allow sign manufacturers to easily extract individual elements (e.g., separate the logo icon from the text), modify colors, adjust dimensions, and generate tool paths for cutting equipment. This is why virtually all professional sign manufacturers require vector artwork for production.

Raster Graphics (Not Recommended for Cutting)

Raster graphics (also called bitmap images) are composed of a fixed grid of pixels (tiny colored squares). Common raster formats include JPG, PNG, GIF, TIFF, and BMP. Because raster images have a fixed resolution, they cannot be scaled up without becoming pixelated (jagged edges and blurry details). A logo that looks sharp on a business card may become visibly pixelated when enlarged to a 4-foot sign.

Raster files are suitable for certain sign applications—such as full-color digital prints, backlit graphics, and large-format banners where the viewing distance is sufficient to mask pixelation. However, they are generally not suitable for cut letters, channel letters, metal logos, or any application where the design needs to be physically cut from a solid material. If you only have a raster version of your logo, most sign manufacturers offer vector redrawing services (typically for an additional fee) to convert the raster image into a clean vector file.

Recommended Vector File Formats for Sign Production

AI (Adobe Illustrator)

AI is the native file format of Adobe Illustrator and is the most widely preferred format among professional sign manufacturers. AI files preserve all vector data, layers, text (if outlined or embedded), colors, and effects. When submitting an AI file, ensure that all text has been converted to outlines (outlined) to prevent font substitution issues, and that any linked images are embedded rather than linked. AI files can be opened and edited by most vector editing software, making them the industry standard for sign artwork.

EPS (Encapsulated PostScript)

EPS is a versatile vector format that is compatible with virtually all vector editing and sign production software. EPS files can contain both vector and raster data, and they preserve color information and layout accurately. EPS is an excellent choice if you’re unsure what software your sign manufacturer uses, as it has the broadest compatibility. Like AI files, text should be outlined before saving as EPS.

PDF (Portable Document Format)

PDF is a universal format that can contain both vector and raster data. High-quality PDFs exported from vector design software (such as Adobe Illustrator or CorelDRAW) preserve vector information and are widely accepted by sign manufacturers. When submitting a PDF, ensure it is exported at high resolution with vector preservation enabled (not flattened to raster). PDFs are particularly useful when the design includes multiple pages or when you want to include both the production-ready vector file and a visual reference for the manufacturer.

SVG (Scalable Vector Graphics)

SVG is an XML-based vector format primarily used for web and digital applications. While SVG files are resolution-independent and can be opened by some sign software, they are less commonly used for traditional sign production than AI, EPS, or PDF. SVG files may not support all features (such as certain gradients, effects, or color profiles) that sign manufacturers need. If you only have an SVG file, it can usually be converted to AI or EPS format by the manufacturer, but verify compatibility before submitting.

CDR (CorelDRAW)

CDR is the native format of CorelDRAW, a vector editing program popular in some regions and among certain sign shops. If you or your designer works in CorelDRAW, CDR files are acceptable, but note that not all manufacturers use CorelDRAW and may need to convert the file. For maximum compatibility, consider exporting to EPS or PDF in addition to providing the native CDR file.

File Formats to Avoid (or Use Only as Reference)

The following formats are generally not suitable as production files for custom signs, though they may be useful as visual references:

• JPG/JPEG: Raster format with lossy compression. Not suitable for cutting or scaling. Use only as a visual reference.
• PNG: Raster format that supports transparency. May be suitable for digital print applications but not for cut letters or dimensional signs.
• TIFF: High-quality raster format. Suitable for large-format digital printing but not for vector cutting applications.
• GIF: Limited-color raster format. Not suitable for sign production.
• DOC/DOCX (Word): Word documents may contain embedded logos, but extracting clean vector artwork from Word files is difficult and unreliable. Always provide the original vector logo file separately.
• PPT/PPTX (PowerPoint): Like Word, PowerPoint files may contain logos but are not suitable as production files. Extract and provide the original vector artwork.
• Website screenshots: Screenshots are low-resolution raster images and should never be used as production files. Always obtain the original vector logo from the brand owner or designer.

How to Prepare Your Logo for Sign Production

Proper logo preparation is the most important step in ensuring a smooth sign production process. Follow these guidelines to prepare your design files:

1. Provide the Original Vector File

Always provide the original vector file created by your logo designer, not a copy extracted from a website, Word document, or PDF. The original vector file will have the cleanest paths, correct colors, and all design elements intact. If you don’t have the original vector file, ask your logo designer or marketing agency to provide it. If the original file is unavailable, your sign manufacturer can typically redraw the logo from a high-resolution raster image for an additional fee.

2. Outline All Text

Before submitting your design file, convert all text to outlines (also called “create outlines” in Illustrator or “convert to curves” in CorelDRAW). Outlining text converts the font characters into vector shapes, ensuring that the text appears exactly as intended regardless of what fonts are installed on the manufacturer’s computer. If text is not outlined, the manufacturer’s software may substitute a different font, resulting in incorrect letterforms, spacing, or dimensions. Note: Once text is outlined, it can no longer be edited as text, so keep an un-outlined copy for your own records.

3. Specify Colors Accurately

Color accuracy is critical for brand consistency. When preparing your design file, specify colors using the appropriate color system:

• Pantone (PMS) colors: For solid-color signs (painted metal, vinyl, acrylic), specify Pantone Matching System (PMS) colors. Pantone colors are standardized and ensure consistent color matching across different materials and production methods. Provide the specific Pantone number (e.g., Pantone 286 C for a deep blue).
• CMYK: For full-color digital prints or backlit graphics, use CMYK color mode. CMYK values should be specified in the design file.
• RGB: RGB is primarily for screen/digital display. For physical sign production, convert RGB colors to Pantone or CMYK to ensure accurate color matching. If you only have RGB values, your manufacturer can convert them, but there may be slight color shifts.
• Material finishes: For metal signs, specify the desired finish (brushed, polished, powder-coated, anodized) in addition to any color. Our guide to metal sign finishes provides detailed information on available finish options.

4. Include Dimensions and Scale Information

While sign manufacturers can scale vector artwork to any size, providing the intended final dimensions helps ensure that proportions, stroke weights, and detail sizes are appropriate for the final sign size. If your logo has very thin lines or small details, these may need to be adjusted for larger sign sizes to ensure they are visible and structurally sound. Include a dimensioned drawing or specify the final sign dimensions in your request.

5. Separate Design Elements by Layer

If your design includes multiple elements (e.g., logo icon, text, tagline, decorative elements), organize them on separate layers in the design file. This allows the manufacturer to easily isolate individual elements for production (e.g., cutting the logo icon from one material and the text from another). Label layers clearly for easy identification.

6. Embed or Link Images Properly

If your design includes raster images (e.g., a photographic background for a digital print), ensure these images are embedded in the file (not linked externally) and are at sufficient resolution for the final output size (typically 100–150 DPI at final size for large-format prints). For cut-letter or dimensional sign applications, avoid raster elements entirely.

7. Provide a PDF Preview

In addition to the production-ready vector file, provide a PDF preview of the design so the manufacturer can verify that the file opens correctly and all elements are present. The PDF serves as a visual reference for what the final design should look like.

Font Licensing and Copyright for Signage

Font licensing is a frequently overlooked but legally important aspect of custom sign production. When you use a specific font in your sign design, you may need to ensure that you have the appropriate license to use that font for commercial signage applications. Here’s what you need to know:

Understanding Font Licensing

Fonts are software products protected by copyright law. When you purchase or download a font, you are typically purchasing a license to use that font under specific terms and conditions, not owning the font outright. Font licenses vary by foundry (the company that designs and sells fonts) and may restrict usage based on:

• Number of users/computers: Desktop licenses typically allow installation on a limited number of computers.
• Use type: Some licenses distinguish between personal use, commercial use, print use, web use, and embedding in digital products.
• Embedding: Many font licenses restrict or prohibit embedding the font in documents (such as PDFs) or software.
• Server/CDN use: Web font licenses may restrict usage to specific domains or traffic levels.

Font Licensing for Physical Signs

For physical signage (cut letters, channel letters, painted signs, etc.), the font is typically used to create vector outlines that are then cut or fabricated from physical materials. This usage is generally covered by most standard desktop/commercial font licenses, as the font is being used to create a physical product rather than being distributed digitally. However, there are important considerations:

• Outlining is not a loophole: Converting text to outlines does not negate font copyright. The outlined shapes are still derived from the copyrighted font design, and the original font license still applies to the resulting artwork.
• Commercial use rights: Ensure your font license explicitly permits commercial use. Some free or personal-use fonts prohibit commercial applications, including signage for businesses.
• Logo usage: If the font is used as part of a logo, some font foundries require a special logo license or may restrict the use of their fonts in logos. Check the license agreement carefully.
• Redistribution to manufacturer: When you send a design file to your sign manufacturer, you are not typically distributing the font itself (if text is outlined), so this is usually permissible. However, if you send the native font file along with the design, ensure your license permits sharing the font with service providers.

Best Practices for Font Compliance

1. Use licensed fonts: Only use fonts that you have properly licensed for commercial use. Avoid using pirated or unlicensed fonts, as this can expose your business to legal liability.
2. Keep license records: Maintain records of all font licenses, including purchase receipts, license agreements, and the number of seats purchased. This is important for audit compliance and legal protection.
3. Choose fonts with broad licensing: When selecting fonts for branding and signage, consider fonts from reputable foundries that offer clear, permissive commercial licensing. Many professional fonts offer desktop licenses that include signage and logo usage.
4. Consider open-source fonts: Fonts released under open-source licenses (such as SIL Open Font License, GPL with font exception, or Apache License) can be used freely for commercial applications, including signage. Popular open-source fonts include Roboto, Open Sans, Lato, Montserrat, and Raleway. However, even open-source fonts may have attribution requirements or other conditions—review the license.
5. Custom font or lettering: For maximum brand uniqueness and zero licensing concerns, consider commissioning a custom font or hand-lettered logo from a type designer. The resulting letterforms are owned by your business (depending on the commission agreement) and can be used without font licensing restrictions.
6. Outline text in production files: Always outline text before sending files to your manufacturer. This ensures the sign is produced with the exact letterforms you intended and avoids font substitution issues.

Logo Copyright and Trademark Considerations

In addition to font licensing, logo copyright and trademark protection are important considerations for custom signage:

• Logo copyright: A logo is automatically protected by copyright as soon as it is created (in most jurisdictions), regardless of whether it is registered. The copyright is typically owned by the logo designer unless ownership is explicitly transferred to the client in a written agreement. When ordering signs featuring a logo, ensure you have the right to reproduce the logo—either because you own the copyright, have a license from the copyright owner, or the logo is in the public domain.
• Work-for-hire agreements: If you commissioned a logo designer, ensure your contract includes a work-for-hire clause or explicit copyright transfer to your business. Without this, the designer may retain copyright ownership, and you may need a license to use the logo on signage.
• Trademark registration: While copyright protects the artistic expression of a logo, trademark protection protects the logo’s function as a source identifier for goods and services. Registering your logo as a trademark provides stronger legal protection against unauthorized use by competitors. Signage featuring your trademark is a legitimate use of your own trademark.
• Third-party logos: If your sign will feature third-party logos (e.g., a multi-tenant pylon sign with multiple business logos, or a sign featuring brand partner logos), ensure you have written permission from each trademark owner to reproduce their logo. Reproducing a third-party logo without permission can constitute trademark infringement.
• Manufacturer’s responsibility: Reputable sign manufacturers will not knowingly produce signs featuring copyrighted or trademarked material without authorization. They may request proof of authorization or a copyright/trademark indemnification statement for certain designs. This is standard practice and protects both parties.

Common Design File Issues and How to Avoid Them

Issue 1: Low-Resolution Raster Logo

Problem: The only available logo is a small JPG or PNG extracted from a website, resulting in pixelated edges when scaled for sign production.

Solution: Obtain the original vector file from the logo designer or brand owner. If unavailable, request a vector redraw service from your sign manufacturer (typically $25–$100 depending on complexity). Always keep a master vector file of your logo for future use.

Issue 2: Text Not Outlined

Problem: The design file contains live text that the manufacturer’s software cannot display correctly due to missing fonts, resulting in font substitution or missing text.

Solution: Always outline all text before submitting production files. In Adobe Illustrator: Select all text → Type → Create Outlines (or Ctrl+Shift+O / Cmd+Shift+O). In CorelDRAW: Select text → Arrange → Convert to Curves (or Ctrl+Q).

Issue 3: Incorrect Color Mode

Problem: The design file uses RGB colors, but the sign will be produced with painted or vinyl materials that require Pantone color matching, resulting in color discrepancies.

Solution: Specify Pantone (PMS) colors for solid-color signs and CMYK for full-color digital prints. If you only have RGB values, ask your manufacturer to convert them to the closest Pantone match and provide a physical color sample for approval before production.

Issue 4: Missing or Unlinked Images

Problem: The design file includes linked images that are not included with the submission, resulting in missing elements when the manufacturer opens the file.

Solution: Embed all images in the design file before saving, or include the linked image files in a folder along with the design file. For sign production, avoid raster elements unless specifically required for digital print applications.

Issue 5: Overly Complex Design for the Sign Type

Problem: The logo has very thin lines, small text, or intricate details that cannot be accurately reproduced at the intended sign size or with the chosen production method (e.g., laser cutting thin metal, or small LED letters).

Solution: Consult with your manufacturer early in the design process to ensure the logo is suitable for the intended sign type and size. They can advise on minimum stroke widths, minimum letter heights, and design modifications needed for production. Our channel letter design guide provides specific design recommendations for dimensional letter signs.

Issue 6: Multiple Logo Versions Without Clear Direction

Problem: The submission includes multiple versions of the logo (horizontal, vertical, icon-only, full-color, single-color) without specifying which version to use for the sign.

Solution: Clearly indicate which logo version to use for the specific sign project. Include a brief or notes document specifying the logo version, colors, dimensions, and any other production requirements. If multiple signs are being produced with different logo versions, specify which version applies to each sign.

Design File Checklist for Sign Buyers

Before submitting your design files to a sign manufacturer, use this checklist to ensure everything is in order:

1. ☐ Vector file format (AI, EPS, PDF, or CDR) — not JPG/PNG/GIF
2. ☐ All text converted to outlines/curves
3. ☐ Colors specified as Pantone (PMS) for solid colors or CMYK for full-color prints
4. ☐ Final dimensions or scale information provided
5. ☐ Design elements organized on clearly labeled layers
6. ☐ All images embedded (not linked) and at sufficient resolution
7. ☐ No hidden or unused elements in the file
8. ☐ PDF preview included for visual reference
9. ☐ Font licenses verified for commercial use
10. ☐ Logo copyright/trademark authorization confirmed
11. ☐ Design suitability for the intended sign type and size verified with manufacturer
12. ☐ Clear instructions included (logo version, colors, dimensions, special requirements)

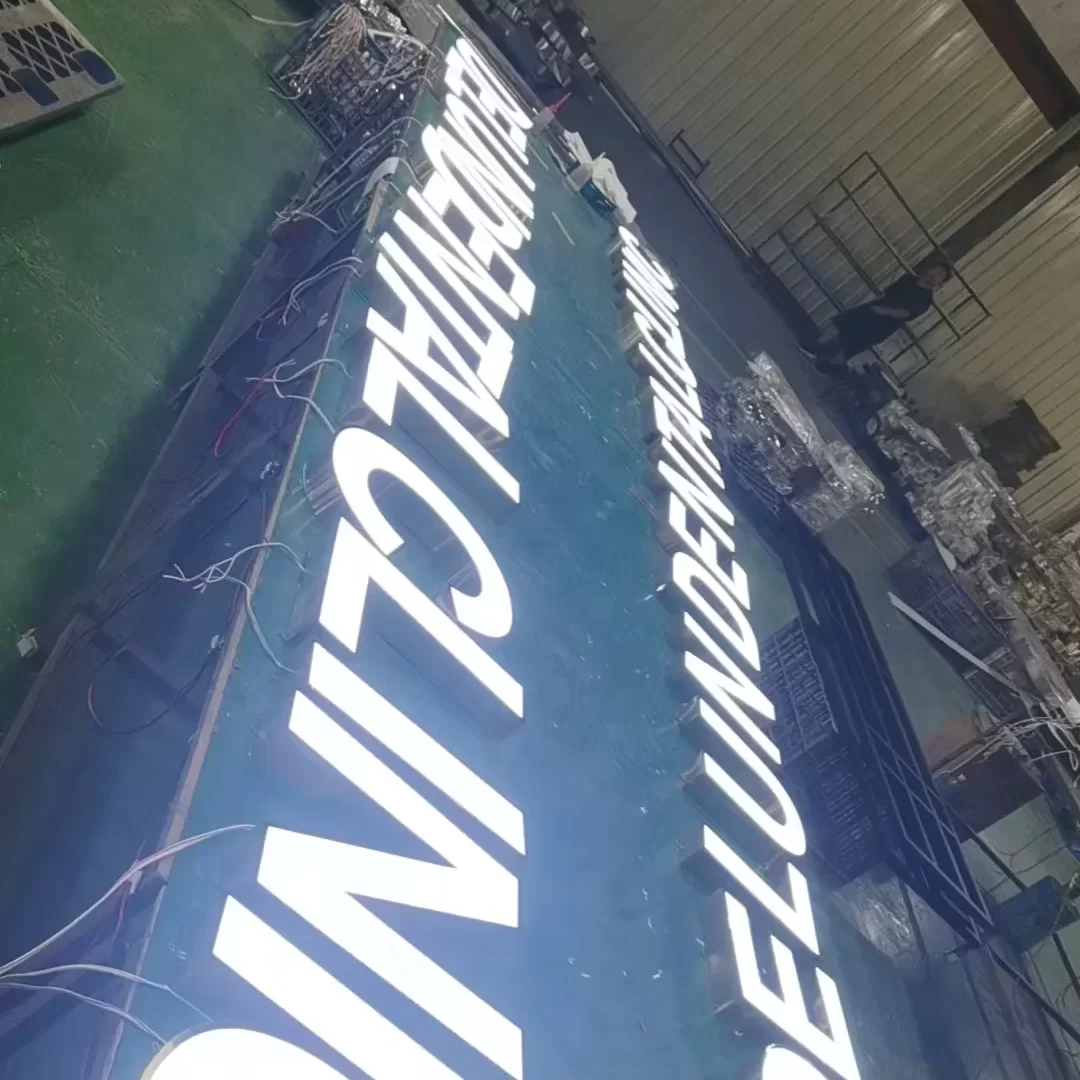

Hongbo Sign Design File Support

At Hongbo Sign, we understand that not every client comes to us with perfectly prepared design files. That’s why we offer comprehensive design file support to ensure your project gets off to the right start:

• Free file review: We review every design file submitted and provide feedback on any issues that may affect production quality, such as low resolution, missing fonts, or color mode issues.
• Vector redrawing service: If you only have a raster image of your logo, our design team can redraw it as a clean vector file for a nominal fee. We’ll provide the redrawn file for your approval before production begins.
• Color matching: We offer Pantone color matching for painted and powder-coated finishes, and can provide physical color samples for approval before bulk production.
• Design consultation: Our team can advise on design modifications needed for specific sign types, such as minimum stroke widths for laser cutting, minimum letter heights for LED illumination, or structural considerations for large signs.
• 3D renderings: For complex sign projects, we can provide 3D renderings of the proposed sign on your building or location, allowing you to visualize the final result before production. Learn more about our 3D sign rendering and proofing process.
• File format flexibility: We accept AI, EPS, PDF, SVG, CDR, and high-resolution raster files. If you’re unsure about your file format, send it to us and we’ll assess its suitability.

Ready to start your custom sign project? Contact us today to submit your design files and receive a free consultation and factory-direct quote. Our team will review your artwork, answer any questions, and guide you through the entire production process from design to delivery.

Frequently Asked Questions

Q: What file format do I need for custom sign production?

A: Vector formats are strongly preferred: AI (Adobe Illustrator), EPS, PDF (with vector content), or SVG. Vector files allow manufacturers to scale artwork to any size without quality loss and to verify logo proportions, letter shapes, and build details accurately. High-resolution PNG or JPG can be used for reference but are not sufficient for production.

Q: Can a sign manufacturer work from a photo or screenshot of my logo?

A: Yes, manufacturers can use reference photos to create an initial budget estimate or to recreate the logo as a production-ready vector file (often for an additional design fee). However, final production requires a vector file to ensure accurate dimensions, clean edges, and correct color matching.

Q: What font licensing issues should I be aware of?

A: Many fonts require commercial licensing for use in signage and marketing materials. When providing artwork, confirm that you have the appropriate licenses for all fonts used, or convert text to outlines (vector paths) before sending files. Using unlicensed fonts in commercial signage can result in legal liability for both you and the manufacturer.

Q: How do I ensure color accuracy in my sign design file?

A: Specify Pantone color codes for brand-critical colors rather than relying on screen RGB values. Request physical color swatches or finish samples from your manufacturer before production to verify the final appearance. Keep in mind that illuminated signs may show different colors when lit versus unlit, so confirm both states during the proofing stage.
